Introduction

  • Energy Sistem® thanks you for buying your new Music Box Z1, we wish you to enjoy it.
  • Portable speaker with line-in and micro SD/SDHC card reader. Enjoy the music from your micro SD/SDHC cards or connect your favourite player. You will be able to take it everywhere and enjoy its sound for long hours thanks to its powerful battery.
  • We suggest you read this user manual to get the most out of your product safely, using all its features.

  • Find the whole Music Box Z1 user manual on the following weblink http://www.energysistem.com/guide/42026

    Care and maintenance

  • Do not expose your Music Box Z1 to shock, dust, humidity or high temperatures.
  • Do not use abrasive or corrosive cleaning products.
  • Do not place your Music Box Z1 close to devices that emit strong magnetic fields.
  • Keep your speaker clean and dust them with a soft dry cloth.
  • Do not disassemble the device. Any repair must be done exlusively by qualified personnel of Energy Sistem Soyntec S.A.
  • Be sure to keep your Music Box Z1 turned off while not in use.
  • Charge the lithium battery when ran out to extend its life.

    Features

General features

  • Play MP3 files from micro SD/SDHC up to 32GB.
  • 3.5 mm line-in port: listen to music from any portable player or even PC.
  • Sound freedom: Share and listen to your music wirelessly everywhere.
  • Clear and clean sound across the audio spectrum.
  • Portable and compact design that allows you to take it everywhere with you and amplify your music.
  • Thanks to its anti-sliding rubber base you can place it on any surface.
  • Smart design with high quality rubber finish.
  • Long-life lithium rechargeable battery.
  • USB port charging system.

Technical features

  • MP3/WMA portable speaker.
  • Supported files: MP3/WMA.
  • Play MP3 files from microSD/SDHC cards up to 32 GB.
  • 3.5mm Jack connection.
  • USB charging system
  • Frequency response: 180Hz-20KHz
  • S/N Ratio: >80 dB.
  • Output power: 3W
  • Driver diameter: 40mm
  • Net weight: 212g
  • Measures: 72x72x75mm

Battery specifications

  • Rated voltage: 3.7V DC
  • Charging time: 2~3 hours
  • Battery capacity: 500mAh
  • USB charging system

  • Battery life up to 8h in micro SD card mode.

    Product Content

  • Music Box Z1 Speaker
  • Line-in cable
  • USB cable
  • Quick guide

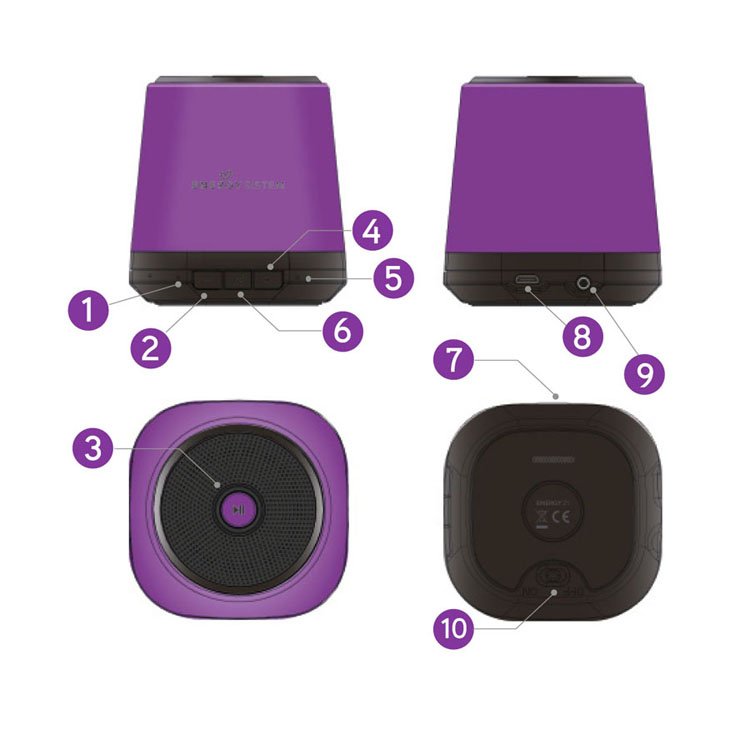

General Overview

=======

  1. Charging Led
    2. Volume -
    3. Play/Pause Button
    4. Volume +
    5. Led Indicator
    6. Menu Button
    7. Card Slot
    8. Usb Connection
    9. Line-in connection
    10. On/Off Button
    |General_overview

Main Functions

Turn on / off your device

Use the button (10) to turn on / off your device.

To turn on your device, move the ON/OFF button (10) to the "ON" position and you will see that the LED (5) flashes in green. The speaker will play a welcome sound meaning that the device is now turned on.
To turn off your device, move the ON/OFF button (10) to the "OFF" position.

While the device is turned on, the LED indicator (5) will keep flashing in green.

Changing play mode

When you turn on your Music Box Z1, it will play music from the connected device (micro SD card or line-in) in case both sources are active, the device will priorize micro SD card mode. When a micro SD card is inserted or an external player is connected to the line-in connection, the device will automatically change into that play mode. If both sources are connected (micro SD card and line-in) you can change the play mode by pressing the menu button (6).

Charging the battery

When your device does not emit any sound or you start hearing some interference, it is time to charge it. Connect the micro USB end of the included USB cable to your Music Box Z1 (8) and the other end to any USB port that can provide energy (PC, USB wall charger, car, etc). The LED indicator (1) will turn red and when the charge is completed the LED will turn off.

NOTE: We recommend charging the device with the switch at OFF position. Do not store the device for a long period of time with a fully discharged battery.

Playing from de micro SD card

Everytime you turn on your Music Box Z1 with a micro SD card in it, it will start to play the music stored in it. In case the device is being used throught the line-in connection, you only need to insert the SD card in the card slot (7) and the play mode will change automatically.

In this play mode, you can control the volume from the speaker. In order to do that; press buttons "-" (2) or "+" (4) until you reach the desired volume. To pause or resume the playback, press PLAY/PAUSE button (3) once. To backward or forward one song, hold "-" (2) or "+" (4) buttons.

Line-in

It is also possible to enjoy your Music Box Z1 without using a micro SD card thanks to its line-in connection (9) in which you can connect an audio cable with a 3.5mm jack connector and the other end to your player.

Your Music Box Z1 must be turned on in order to use this function.

NOTE: While using the device in line-in mode, it is not possible to control the playback neither the volume from the speaker. You have to do it from the player connected.

Warranty

Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time the goods were purchased during a period of 36 months. Batteries are excluded from the 36-month warranty, having a warranty
period of 12 months.

This warranty covers any defects in workmanship or materials. This warranty does not cover any failure of the product due to accidents, misuse or
alteration made by an unauthorized person.

The special 36-months warranty is valid for the European Union. For other countries, please refer to your specific legislation or your local distributor.

Warranty Procedure

  1. Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently Asked Questions), user manuals, drivers and updates available, as the possibility to submit a query to the Technical Service or consult the warranty. You can check the availability of the user manual in your language at http://www.energysistem.com/en-en/support/manuals
  2. Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice.

Specifications are subject to change without notice.

Trademarks. All company, brand and product names are trademarks or registered trademarks of their respective companies.

© 2013 by Energy Sistem Soyntec S.A. All rights reserved.

Declaration of Conformity

Manufacturer Name: Energy Sistem Soyntec S.A.

Address: Pol. Ind. Finestrat C/. Calpe, 1 - 03509 Finestrat Alicante (Spain).

Tel: 902 388 388 // Fax: 902 119 034 // NIF: A53107488

We declare under our own exclusive responsibility that the product:

Music Box Z1

Manufacturing Country: China

Is in compliance with the essential norms and standards of the Directive 1999/5/EC of the European Parliament and of the Council of March 09th 1999.
Imagen1 This symbol on the product or the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. For more information, please contact the local authority or dealer where you purchased the product.
