Introduction

  • Thank you for your trust in our company and for buying the new Headphones 3 Bluetooth. We hope you enjoy it.
  • These Bluetooth headphones combine an outstanding deep bass experience with a modern design in fresh and youthful colours. You can answer your phone calls and control your music playback directly from your headphones.
  • We recommend you to read this manual in order to enjoy your device safely and with maximum performance.

Care and maintenance

  • Do not expose your Headphones 3 Bluetooth to impacts, dust, humidity or high temperatures.
  • Do not use neither corrosive nor abrasive cleaning products.
  • Keep the headphones clean and free of dust using a soft dry cloth.
  • Do not disassemble your headphones. All repair works should be carried out exclusively by qualified staff of Energy Sistem Technology, S.A.
  • Do not leave the battery completely discharged for a long period of time.

Features

  • Headphones with Bluetooth technology
  • Easy synchronization without codes
  • Compatible with iOS, ANDROID and PC devices
  • Hands-free and call control functions
  • Control playback and volume directly from the headphones
  • Rechargeable lithium battery
  • USB charging cable

Technical features

  • Bluetooth version: Bluetooth 4.1, class II.
  • Supports following profiles: A2DP1.2 AVRCP1.4 HSP1.2 HFP1.6.
  • Distance range: 10 m.
  • Operating frequency: 2.4 GHz.
  • Maximum output power: 0.98 dBm.
  • Frequency response: 20 Hz - 20 KHz.
  • THD < 1%.
  • SPL: 114 ± 3dB
  • Dynamic transducer.
  • Diaphragm diameter: 40 mm.
  • Microphone sensitivity: -42 dB.
  • Size: 182 x 173 x 55 mm.
  • Weight: 134 g.

Battery specifications

  • 200 mAh lithium battery.
  • Battery life in playback mode: 14 hours
  • Charging time: 1,5 hours
  • USB - microUSB charging cable

Product content

  • Headphones 3 Bluetooth
  • MicroUSB to USB charging cable
  • Quick guide
  • Auxiliary audio cable

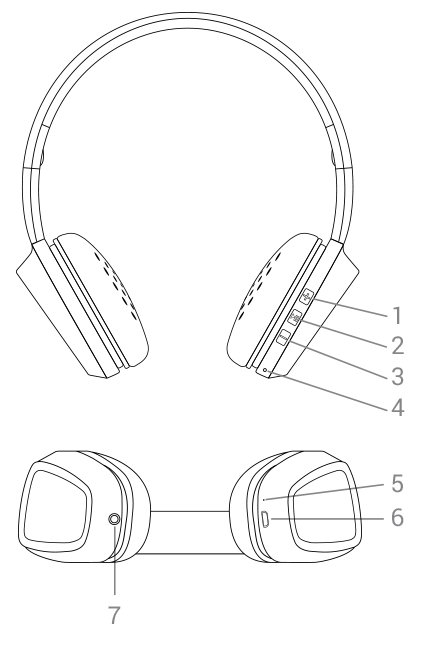

General overview

Imagen1|

  1. VOLUME + / NEXT
  2. MULTIFUNCTION BUTTON
  3. VOLUME - / BACK
  4. STATUS INDICATOR
  5. MICROPHONE
  6. CHARGING PORT
  7. AUDIO-IN

Main functions

Switching on and off the device

To turn on your Headphones 3 Bluetooth press and hold the MULTIFUNCTION BUTTON (2) for 2 seconds and the INDICATOR (4) will start flashing blue. You will hear a confirmation sound, which means that your headphones are on.

To turn off your Headphones 3 Bluetooth press and hold the MULTIFUNCTION button (2) again for 4 seconds and you will hear a sound, which means that your headphones are off. The INDICATOR (4) will stop flashing.

The INDICATOR (4) will keep flashing blue while your Headphones 3 Bluetooth are on.

Charging the battery

You will hear a warning sound when your headphones are about to run out of battery. This sound will be heard every few minutes until the battery is completely discharged. Connect the microUSB end of the included USB cable to the CHARGING PORT (6) and the other USB end to any device with an USB charging port that provides energy (PC, USB wall charger, car charger, etc) to charge the battery. The INDICATOR (4) will glow red while charging the battery and will turn blue once the battery is fully charged.

Important: We recommend you fully charge the battery before using the product for the first time.

Important considerations:

  • We recommend turning off the device while charging it.
  • Do not store or leave your device unused for a long period of time with an empty battery.

Bluetooth pairing

When your Headphones 3 Bluetooth are off, press and hold the MULTIFUNCTION button (2) for 4 seconds and the INDICATOR (4) will start flashing blue and red. At this point, your Headphones 3 Bluetooth will be trying to pair with another Bluetooth device. Start then the search and pairing process from your Bluetooth device (smartphone, tablet, laptop, etc). Once your Headphones 3 Bluetooth appear on your device screen, select "connect". The devices will be synchronized immediately without codes. You will hear a confirmation sound and the INDICATOR (4) will flash blue.

Auto power off

Your Headphones 3 Bluetooth will automatically turn off in the following situation:

  • After 5 minutes in search mode, if they are not synchronized with another device.

Playback control

Once your Headphones 3 Bluetooth are syncronized, you will be able to control basic playback functions such as turning up and down the volume, switching to the next or previous song and pausing and resuming playback directly from your headphones.

Press the VOLUME + (1) and VOLUME - (3) buttons to turn up and down the volume respectively. You will hear a beep when reaching the maximum volume level.

Press and hold the NEXT button (1) to switch to the next song. You can also press and hold the BACK button (3) to switch to the previous song.

Press the MULTIFUNCTION button (2) once to pause or resume playback.

Important: Your Headphones 3 Bluetooth will automatically turn off if music is paused for more than 10 minutes in order to save battery.

Call control

Once your Headphones 3 Bluetooth and smartphone are synchronized, you will be able to receive calls and use the MICROPHONE (6) to talk while wearing your headphones.

Use the MULTIFUNCTION button (2) to answer an incoming call. If you are listening to music when you receive a call, playback will pause and you will hear an incoming call sound. You can also press and hold this button for 2 seconds to reject an incoming call.

Press the MULTIFUNCTION button (2) again to end a call. Playback will resume from the point when the music stopped.

You can also press twice the MULTIFUNCTION button (2) while you are listening to music to dial the last telephone number in your smartphone's call log.

Audio input

In addition to all modes explained so far, you can also connect your Headphones 3 Bluetooth to your music player using the included audio cable if you run out of battery or simply do not want to use the wireless connection.

Connect the cable that comes with the product to the AUDIO-IN (7) to use this mode.

Important: You will not be able to control playback from the headphones while this mode is on so you will have to use your music player to turn up and down the volume, switch to previous/next song or pause playback.

Warranty

Energy Sistem Technology, S.A. is liable for any lack of conformity that exists at the time the goods are purchased during a period of 36 months. Batteries are excluded from the 36-month warranty, having a warranty period of 12 months.

This warranty covers any defects in workmanship or materials. This warranty does not cover any product failure due to accidents, misuse or alteration made by an unauthorized person.

The special 36-month warranty is valid for the European Union. For other countries please refer to the specific legislation or your local distributor.

Warranty procedure

Please visit http://www.energysistem.com/en/support and select your product to view the FAQ (Frequently Asked Questions), user manual, quick guide, drivers and updates available, submit a query to Technical Support Service or manage the warranty.

You can check the availability of the user manual in your language at http://www.energysistem.com/en-en/support/manuals

Alternatively, you may prefer to contact the distributor that sold the product by presenting the purchase receipt or invoice.

Important: This warranty does not cover any damage or loss of data stored in warranty products. Therefore, Technical Support of Energy Sistem Technology, S.A. will not assume any loss of the above mentioned information. In this respect it is recommended that you make a backup of your data and remove any personal data from the product's internal memory before you send it or send the device with the original data only.

Specifications are subject to change without notice.

Trademarks All company, brand and product names are trademarks or registered trademarks of their respective companies.

©2017 by Energy Sistem®. All rights reserved.

Declaration of conformity

Issuer?s name: Energy Sistem Technology, S.A. - CIF: A53107488
Address: C/ Calpe, 1 - 03509 Finestrat - Alicante (Spain)
Tel: + 34 902 388 388 / + 34 966 813 257

We declare under our own exclusive responsibility that the product

Description: Wireless headphones
Brand: Energy Sistem
Model: Headphones 3 Bluetooth
Manufacturer: Energy Sistem Technology, S.A.
Manufacturing Country: China

referred to in this declaration is in compliance with the essential norms and standards

EN60065:2014

EN62479:2010

EN 301 489-01 v2.1.1

EN 301 489-17 V3.1.1

EN 300 328 V2.1.1

in conformity with the essential norms and standards of the Directive 2014/53/EU of the European Parliament and of the Council of April 16th 2014.

Finestrat, 01st July 2017.
