Introduction

  • Thank you for your trust in our company and for buying the new Earphones Neckband 3 Bluetooth. We hope you enjoy them.
  • We recommend you to read this manual in order to enjoy your device safely and with maximum performance.

Care and maintenance

  • Do not expose your Earphones Neckband 3 Bluetooth to impacts, dust, humidity or high temperatures.
  • Do not use neither corrosive nor abrasive cleaning products.
  • Keep the earphones clean and free of dust using a soft dry cloth.
  • Do not disassemble your earphones. All reparation works should be carried out exclusively by qualified staff of Energy Sistem Technology, S.A.
  • Do not leave the battery completely discharged for a long period of time.

Features

  • Bluetooth earphones with in-ear design for better ergonomics, neck design that adapts to your neck shape.
  • Designed to be comfortable and suitable for any situation.
  • Built-in neckband buttons to control your playlist.
  • Built-in neckband microphone with hands-free function.
  • Keep your earphones together with the magnetic function when not using them to be comfortable at all times.
  • Up to 6 hours of continuous music playback.
  • Rechargeable battery.

Technical specifications

  • CONNECTIVITY
  • Bluetooth: 4.2
  • Range: 10 m
  • Operating frequencies: 2.4 GHz

  • Maximum output signal: < 20 dBm

  • DRIVERS:
  • Frequency response: 20 - 20000 Hz
  • Driver diameter: 9 mm
  • SPL: 97 ± 3 dB
  • Maximum power: 5 mW
  • Impedance: 16 ohms

  • THD < 1%

  • MICROPHONE:

  • Sensitivity: -42 dB ± 3 dB (@1 kHz)

  • BATTERY:
  • Capacity: 100 mAh / 3.7 V
  • Type: Li-Po
  • Battery life:
    • Battery life @ 50% volume: 10 hours
    • Battery life @ 70% volume: 6.5 hours
    • Battery life @ 100% volume: 4.5 hours
  • Charging port: microUSB (type B)

  • Charging time: < 3 hours

  • OTHER FEATURES
  • MicroUSB charging cable

Product content

  • Earphones Neckband 3 Bluetooth
  • MicroUSB charging cable
  • Interchangeable earbuds
  • Quick guide

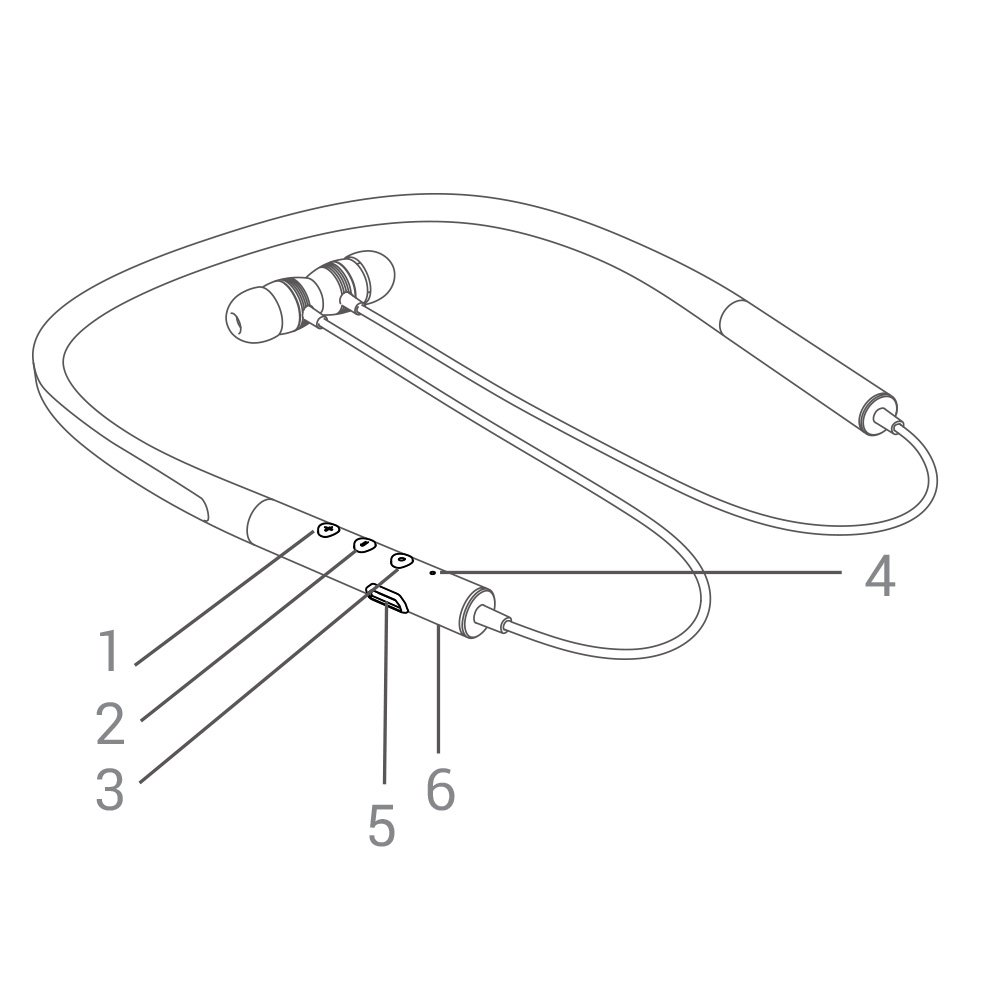

Buttons and ports

  1. VOLUME +/ NEXT
  2. VOLUME -/ BACK
  3. MULTIFUNCTION BUTTON
  4. STATUS INDICATOR
  5. CHARGING PORT
  6. MICROPHONE


First time use

Perform the following steps before using the headset for the first time. This will optimize battery life.

  1. Charge the headset for 1 hour.
  2. Disconnect the charging cable and reconnect it.
  3. Leave the headset charging for at least 6 hours.


Switching on and off the device

To turn on your Earphones Neckband 3 Bluetooth, press and hold the MULTIFUNCTION BUTTON (3) for 2 seconds. You will hear a confirmation sound and the STATUS INDICATOR (4) will glow blue. The STATUS INDICATOR (4) will keep flashing blue while your Earphones Neckband 3 Bluetooth are on. To turn off your Earphones Neckband 3 Bluetooth, press and hold the MULTIFUNCTION BUTTON (3) for 4 seconds. You will hear a sound when turning off the earphones.

Important: We recommend you fully charge the battery before using the product for the first time.


Charging the battery

When the battery level is below 10%, the STATUS INDICATOR (4) will flash red and you will hear a sound to remind you to charge the battery.

The STATUS INDICATOR (4) will glow red while charging the device and will turn blue once the charging process has been completed. Plug the microUSB end of the USB cable provided into the CHARGING PORT (5) of your earphones and the other USB end to any device with an USB charging port that provides energy (PC, USB wall charger, car charger, etc) to charge the battery. The charging time is approximately 3 hours.

Important considerations:

  • Do not store or leave your device unused or completely discharged for a long period of time.


Bluetooth pairing

Once your Earphones Neckband 3 Bluetooth are off, press and hold the MULTIFUNCTION BUTTON (3) for approximately 4 seconds, until the STATUS INDICATOR (4) starts flashing red and blue. At this point, your earphones and your Bluetooth device can be paired. Once "Neckband 3" appears on your devide screen, press "connect". You will hear a sound that confirms that both devices have been paired correctly.

If you previously paired your Earphones Neckband 3 Bluetooth with a device, they will connect automatically next time you turn them on. In case that you want to pair them with another device, repeat the pairing process (press and hold the MULTIFUNCTION BUTTON (3) for 4 seconds).


Bluetooth playback control

Once your Earphones Neckband 3 Bluetooth are syncronized, you will be able to control basic playback functions such as turning up and down the volume and switching to the next or previous track directly from your earphones.

Press VOLUME + (1) and VOLUME - (2) to turn up and down the volume respectively. You will hear a sound when reaching the maximum and minimum volume levels.

Press and hold NEXT (1) to switch to the next song. You can also press and hold BACK (2) to go back to the previous song.

Press the MULTIFUNCTION BUTTON (3) once to pause or resume playback.

Call control

Once your Earphones Neckband 3 Bluetooth and your smartphone are synchronized, you will be able to answer calls thanks to the built-in MICROPHONE (6) while using your earphones.

Press the MULTIFUNCTION BUTTON (3) to answer an incoming call. If you are listening to music when you receive a call, playback will pause and you will hear an incoming call sound. Press and hold this button for 2 seconds to reject an incoming call.

Press the MULTIFUNCTION BUTTON (3) again to end a call. Playback will resume from the point when the music stopped.


Magnetic function

The earbuds of your Earphones Neckband 3 Bluetooth have magnets on the back that allow you to keep them together when not using the earphones. This way you can always carry them with you and listen to your music any time.


Warranty

You can check the warranty terms here:
https://www.energysistem.com/terms-warranty

Declaration of conformity

Issuer?s name: Energy Sistem Technology, S.A.
Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain)
Tel: +34 966 830 324
CIF: A53107488

We declare under our own exclusive responsibility that the product:

  • Description: Wireless earphones
  • Brand: Energy Sistem
  • Model: Earphones Neckband 3 Bluetooth
  • Manufacturer: Energy Sistem Technology, S.A.
  • Manufacturing country: China

referred to in this declaration is in compliance with the essential norms and standards

ETSI EN 301 489-1 V2.1.1 (2017-02)
ETSI EN 301 489-17 V3.1.1 (2017-02)
ETSI EN 300 328 V2.1.1 (2016-11)
EN 62479:2010

in conformity with the provisions of the Directive 2014/53/EU of the European Parliament and of the Council of 16th April 2014.

Finestrat, 1st July 2018

Imagen1

Marco Antonio Velázquez Fierro
Product Management Director
