Introduction

  • Thank you for trusting our company and buying the new Earphones ESG 6 True Wireless. We hope you enjoy the product.
  • Wireless low latency and dual driver earphones.
  • Compete for victory.


Care and maintenance

  • Do not expose your Earphones ESG 6 True Wireless to impacts, dust, humidity or high temperatures.
  • Use neither corrosive nor abrasive cleaning products.
  • Do not disassemble the device. All repair works should be carried out exclusively by qualified staff of Energy Sistem Technology, S.A.
  • Please make sure your Earphones ESG 6 True Wireless are off when you are not using them. Do not store them with an empty battery for long periods of time.


Safety

  • True Wireless earphones with in-ear design that fit your ears perfectly. Always with you.
  • Low Latency (< 100 ms) to enjoy sound in perfect sync with onscreen action.
  • Listen to any sound effect and experience stunning sound with Dual Driver technology.
  • Enjoy versatility and optimal sound quality when chatting thanks to the two MEMS microphones.
  • Enjoy your video games, films and music. Forget about running out of battery. Enjoy up to 20 hours of battery life (5 hours every time you charge the earphones and 15 additional hours using the charging case).
  • Blue LED light design to stand out when playing video games, listening to music, etc.
  • Manage music playback and all chat options using the built-in controls.
  • Smartphone, PC and TV compatible.


Technical specifications

Audio

  • Frequency response: 20 Hz ~ 20 kHz
  • Driver diameter: 6 mm
  • Neodymium magnet
  • Maximum power: 5 mW
  • In-ear design
  • Type: dual driver

Connectivity

  • Bluetooth 5.0, class 2
  • Frequency band: 2.4 GHz
  • Maximum output power: < 20.00 dBm
  • Compatible Bluetooh profiles: HSP / HFP / A2DP / AVRCP
  • Up to 10 m distance range
  • True Wireless function with auto-pairing
  • Hands-free function
  • Low latency mode

Microphone

  • Type: built-in MEMS microphone
  • Sensitivity: -42 dB ± 3 dB (@1 kHz)
  • Frequency range: 100 Hz ~ 10 kHz

Battery

Earbuds:
  • Capacity: 50 mAh / 3.7 V
  • Type: lithium polymer
  • Battery life at medium volume: 5 hours*
  • Charging time: 1.5 hours
  • Changing method: charging case

?*? This value is approximate. The battery life depends on the selected volume and the type of music.

Charging case:
  • Capacity: 500 mAh / 3.7 V
  • Type: lithium polymer
  • Extra battery life: 15 hours
  • Charging time: 1.5 hours
  • Charging method: USB Type-C

Other features

  • LED light


Product content

  • Earphones ESG 6 True Wireless
  • Earbud set
  • Charging case
  • USB Type-C cable
  • Quick guide

Important: We recommend trying out the provided ear tips in different sizes to choose the ones that fit your ears best. Using ear tips that don?t fit correctly may have an impact on the perceived sound quality.

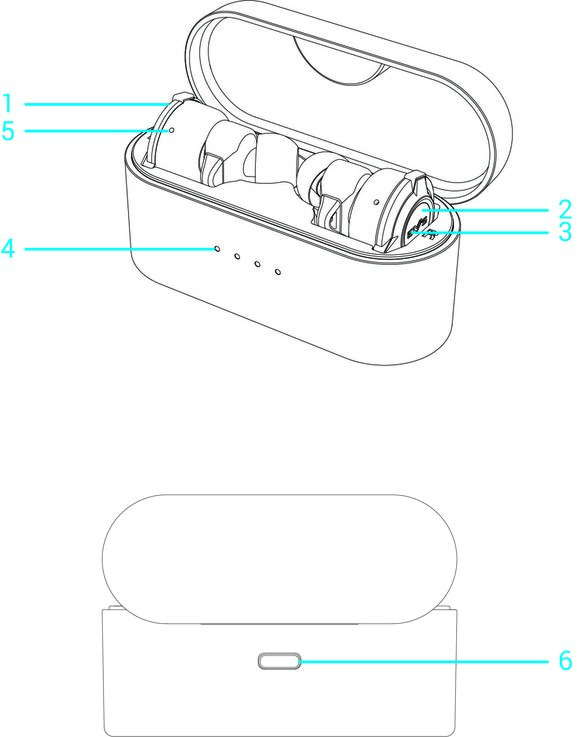

General overview

Imagen1

  1. Left multifunction button
  2. Right multifunction button
  3. LED logo
  4. Charging indicator (charging case)
  5. LED status indicator
  6. USB Type-C charging port


First use

Please perform the following steps before using the earphones for the first time. In this way you will optimize the useful life of the batteries.

  1. Place the earbuds inside the charging case.
  2. Charge the case, with the earphones inside, until all 4 LED lights are complete.
  3. Take the earphones out of the charging case and put them back in it.
  4. Charge the case again, with the earphones inside, for 4 hours.


Switching on and off the device

To switch on your Earphones ESG 6 True Wireless, simply take them out of the charging case or press and hold the Right and Left multifunction buttons (2 and 1) for 2 seconds. At this point, the LED status indicator (5) on both earbuds starts flashing.

To switch off your Earphones ESG 6 True Wireless, put them back in the charging case or press and hold the Right and Left multifunction buttons (2 and 1) for 5 seconds.


Bluetooth pairing

Switch on your Earphones ESG 6 True Wireless. At this point, the LED status indicator (5) on the earbuds flashes red and both units pair automatically. Select Earphones ESG 6 True Wireless from the list of Bluetooth devices on your smartphone or Bluetooth music player and press ?connect?. Both devices will be connected immediately and without codes. You will hear a confirmation sound.

If you previously paired the earbuds with a device, there is no need to repeat the pairing process again. Just enable Bluetooth on your music player and switch on your Earphones ESG 6 True Wireless. They will sync with it automatically.


Playback control

Play/Pause

Press the Right multifunction button (2) or the Left multifunction button (1) twice to pause or resume playback.

Volume +/Volume -

Press the Right multifunction button (2) to turn up the volume or the Left multifunction button (1) to turn it down.

Skipping to the next or previous track

Press and hold for 2 seconds the Right multifunction button (2) to skip to the next track or the Left multifunction button (1) to switch to the previous track during music playback.

Call control

Once the Earphones ESG 6 True Wireless and your smartphone are synchronised, you can control calls from the earphones.

Answering/Ending a call

To answer an incoming call, press the Right multifunction button (2) or the Left multifunction button (1) twice. Press the same button twice to hang up.

Gaming mode

You can enable low latency (< 100 ms) mode on your Earphones ESG 6 True Wireless to enjoy sound in perfect sync with onscreen action while gaming. To do so, press the Right multifunction button (2) or the Left multifunction button (1) three times in a row.

Important: The Bluetooth range may be shortened to provide low latency while gaming.


Lighting modes

Switch on or off the light on the Earphones ESG 6 True Wireless to set the perfect gaming atmosphere. Press the Right multifunction button (2) or the Left multifunction button (1) four times to switch on or off the LED logo (3).


Charging the battery

Earphones

When the battery level of your Earphones ESG 6 True Wireless is below 10%, you will hear a low battery warning sound. To charge the earphones? battery, put the earbuds back in the charging case. The earphones? LED status indicator (5) on the earbuds lights up red and switches off once the charging process is complete.

Charging case

When the battery level of the charging case is below 10%, the first LED of the Charging indicator (charging case) (4) starts flashing. Plug the USB Type-C end of the provided cable into the USB Type-C charging port (6), and the other end into a 5 V USB charging device. The LEDs of the Charging indicator (charging case) (4) light up as the battery charges. Once the charging process is complete, all LEDs will glow.

Important: We recommend not leaving neither your Earphones ESG 6 True Wireless nor the charging case unused for long periods of time with an empty battery. We advise charging the battery at least once a month.

Caution: Do not charge your headphones with fast charging adapters or dedicated laptop charging adapters, Because their output voltage exceeds 5V and the device may become unusable.


Restoring factory settings

To reset the device to factory settings, follow the steps below:

1- Remove the Earphones ESG 6 True Wireless from the list of Bluetooth devices on your smartphone or Bluetooth music player.

2- Switch off the earphones.

3- Press and hold the Right and Left multifunction buttons (2) and (1) for 10 seconds. Factory settings will be restored and the headphones will switch off automatically.

4- Switch on the earbuds as usual and repeat the steps to pair your smartphone or Bluetooth player.


Warranty

You can check the warranty terms here

Declaration of conformity

Issuer's name: Energy Sistem Technology, S.A. - CIF: A53107488
Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain)
Tel: +34 966 830 324

We declare under our sole and exclusive responsibility that the product:

Description: wireless earphones
Brand: Energy Sistem
Model: Earphones ESG 6 True Wireless
Manufacturer: Energy Sistem Technology, S.A.
Manufacturing country: China

referred to in this declaration complies with the essential norms and standards:

EN 300 328 V2.2.2 (2019-07)
EN 301 489-1 V2.2.3 (2019-11)
EN 301 489-17 V3.2.4 (2020-09)
EN 55032:2015/A11:2020
EN 55035:2017/A11:2020
EN IEC 61000-3-2:2019
EN 61000-3-3:2013/A1:2019
EN 62479:2010
EN IEC 62368-1:2020+A11:2020

in conformity with the provisions of the Directive 2014/30/EU of the European Parliament and of the Council of 29th March 2014.

Finestrat, 1st October 2020

Imagen1
Miguel Ángel Aragüez García
Innovation and Technology Director
