Introduction

Thank you for trusting our company and buying the new Headset Office 3. We hope you enjoy it. Before you start using the product, we strongly recommend reading this manual to get used to it.


Care and maintenance

  • Do not expose your Headset Office 3 to impacts, dust, humidity or high temperatures.
  • Use neither corrosive nor abrasive cleaning products.
  • Do not disassemble the device. All repair works should be carried out exclusively by qualified staff of Energy Sistem Technology, S.A.


Technical specifications

Audio

  • Frequency response: 20 Hz - 20 kHz
  • Driver diameter: 40 mm
  • Type: dynamic
  • Neodymium magnet
  • Design: closed, on-ear
  • Impedance: 32 ohms

Microphone

  • Type: flexible and adjustable microphone
  • Sensitivity: -42 dB ± 3 dB
  • Frequency response: 100 Hz ~ 10 kHz

Cable

  • Length: 150 cm
  • Plug: 3.5 mm mini jack

Computer adapter

  • Cable length: 50 cm
  • Connector: USB Type-A
  • Volume control and mute function
  • Windows XP / Vista / 7 / 8 / 8.1 /10 compatible
  • Compatible with Mac OS 10.4 or higher

Other features

  • Adjustable headband


Product content

  • Headset Office 3
  • USB adapter
  • Pop filter
  • Quick guide

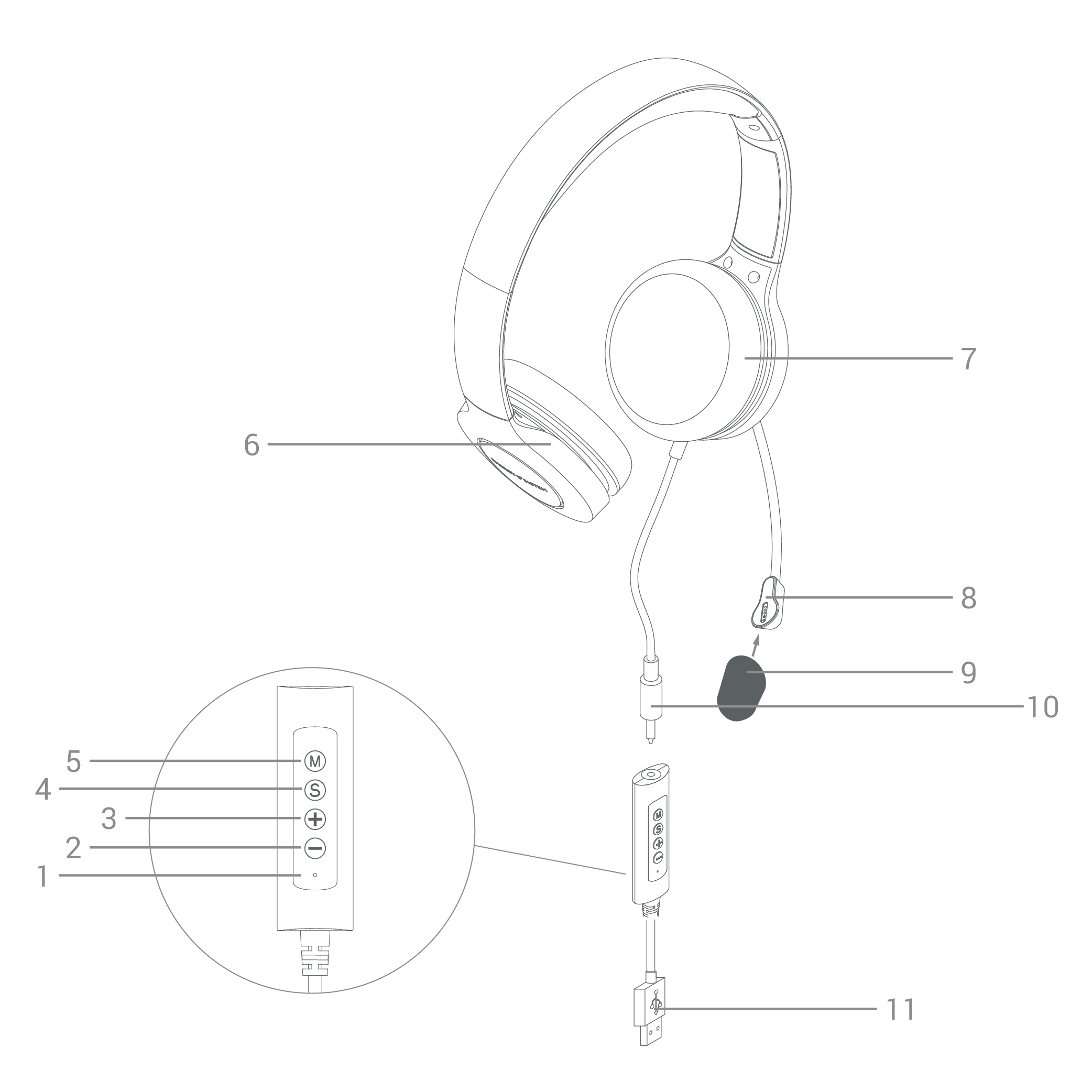

General overview

1.Muted mic indicator
2. Volume -
3. Volume +
4. Sound on/off
5. Mute/Unmute microphone
6. Right ear cup
7. Left ear cup
8. Microphone
9. Pop filter
10. 3.5 mm mini jack plug
11. USB plug for computer
|Imagen1|

Using the microphone

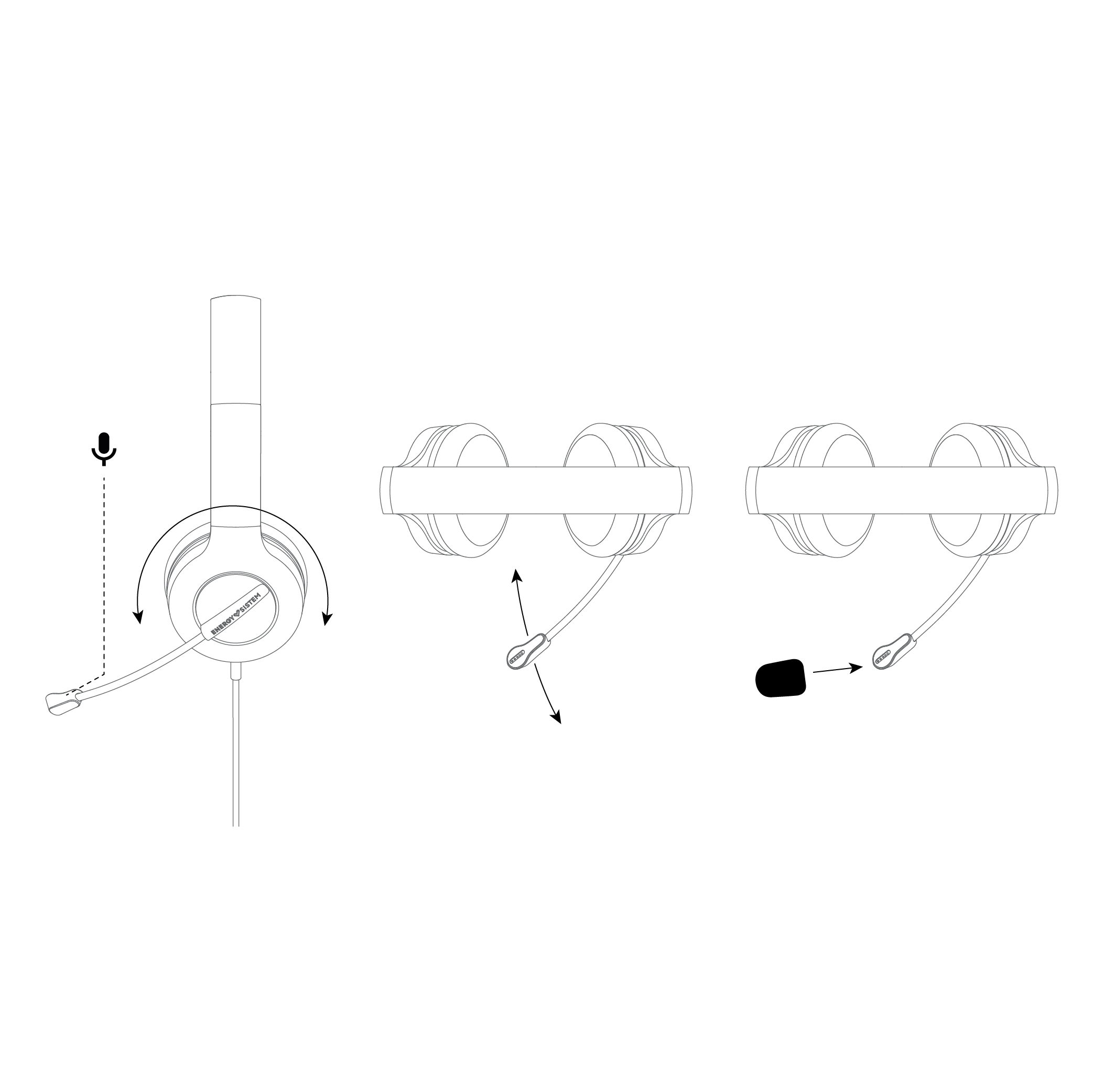

Adjusting the headset

To make video calls, you can wear the Microphone (8) on either the right or left side of the mouth, whichever is most comfortable for you. Rotate the top part of the mic to adjust the position.

When making video calls you will hear mono sound, so you don't have to worry about how you wear the headset.

On the other hand, you will listen to music in stereo. We therefore recommend taking into account the inner Right (6) and Left (7) markings to wear the headset properly.

Adjusting the microphone

Wear the Microphone (8) on either side of the mouth. Take into account the Microphone (8) holes indicating the side that should rest close to the mouth to ensure accurate voice capture.

Optionally, you can use the Pop filter (9) provided with the product to reduce popping sounds caused by the air coming out of the mouth when talking. We recommend using it if you leave a distance of less than 5 cm between lips and Microphone (8).


Imagen1

Connecting the microphone to a computer

There are two possibilities to connect the Headset Office 3 to your computer:

USB port

Use the USB adapter provided with the product. Simply connect the USB plug for computer (11) to the USB port on your computer. The computer will detect the connected device after a few seconds. Once you have done this, restart the computer so that all necessary drivers are installed correctly.

If the device is not working properly, unplug the computer adapter, plug it once again and then restart the computer to reinstall all necessary drivers.

This adapter allows you to adjust the volume as follows:

  • To turn up or down the computer volume, press Volume + (3) or Volume - (2).

  • Press the S button (Sound on/off (4)) to mute the headset.

  • Press the M button (Mute/Unmute microphone (5)) to mute the microphone. The Muted mic indicator (1) glows red when the microphone is muted.



Note: Make sure the 3.5 mm mini jack plug is correctly inserted into the USB adapter.


Using the 3.5 mm mini jack plug

If your computer features a single audio connection, connect the headset directly using the 3.5 mm mini jack plug (10) or TRRS connector. This connection must work both as an audio input and output.

It is usually marked with a headset symbol.



Important: In both cases you have to select the headset when adjusting the computer sound settings. Select the headset microphone as the computer audio input and the headset/headphones as the computer audio output.


Connecting the microphone to a smartphone

You can also plug the Headset Office 3 into your smartphone using the 3.5 mm mini jack plug (10) to make video calls or listen to music.

If your smartphone doesn't have a 3.5 mm mini jack connection, you can use the Type-C adapter, which is usually provided with smartphones that don't feature this type of connection.


Warranty

You can check the warranty terms here

Declaration of conformity

Issuer's name: Energy Sistem Technology, S.A. - CIF: A53107488
Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain)
Tel: +34 966 830 324

We declare under our sole and exclusive responsibility that the product:

Description: office headset
Brand: Energy Sistem
Model: Headset Office 3
Manufacturer: Energy Sistem Technology, S.A.
Manufacturing country: China

referred to in this declaration complies with the following European Union directives:

EN 55032:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55035:2017

in conformity with the provisions of the Directive 2014/30/EU of the European Parliament and of the Council of 16th April 2014.

Finestrat, 1st July 2021

Imagen1
Miguel Ángel Aragüez García
Innovation and Technology Director
