Introduction


Thank you for trusting our company and buying the new Headphones Microphone 1. We hope you enjoy it. Before you start using the product, we strongly recommend reading this manual to get used to it.


Care and maintenance

  • Do not expose your Headphones Microphone 1 to impacts, dust, humidity or high temperatures.
  • Use neither corrosive nor abrasive cleaning products.
  • Do not disassemble the device. All repair works should be carried out exclusively by qualified staff of Energy Sistem Technology, S.A.


Technical specifications


Microphone

  • Type: flexible microphone
  • Sensitivity: -39 dB ± 3 dB (@1 kHz)
  • Frequency range: 100 Hz ~ 10 kHz

Cable

  • Length: 190 cm
  • Plug: 3.5 mm jack
  • Volume control
  • Microphone mute switch
  • Play/Pause control (only smartphones)


Product content

  • Headphones Microphone 1
  • Quick guide

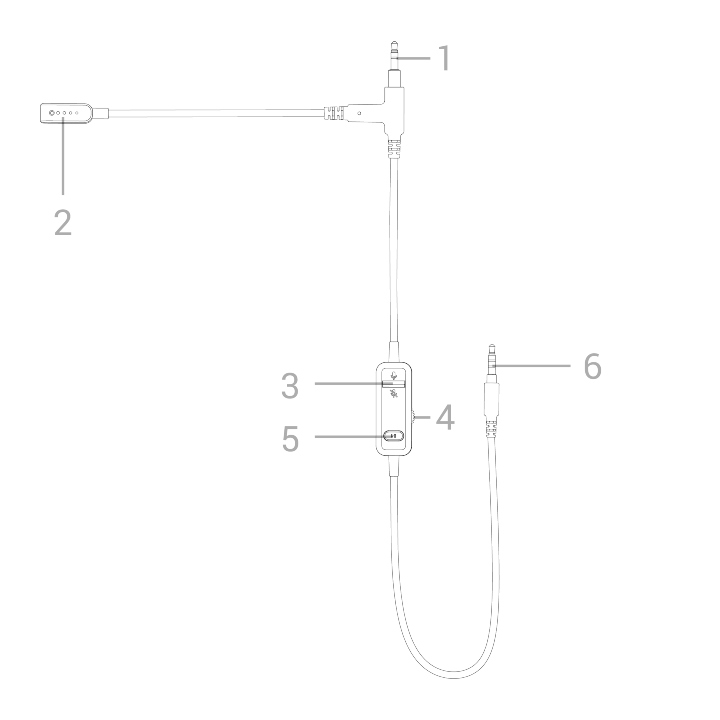

General overview
1. Mini jack plug for 3.5 mm input
2. Microphone
3. Mic on/off
4. Volume control
5. Play/Pause
6. Mini jack plug for 3.5 mm output
Imagen1


Using the microphone


Adjusting the microphone

Wear the Microphone (2) on either side of the month and adjust it properly. Take into account the 5 dots on the Microphone (2) indicating the side that should rest close to the mouth to ensure accurate voice capture.


Connecting the microphone to a computer

Plug your Headphones Microphone 1 into your headphones and connect the headset to a computer.

Using the 3.5 mm mini jack plug

If your computer features a combined audio connection (which works both as an audio input and output), you can plug the headset directly into the computer without using a splitter. It is usually marked with a headphones symbol. If your computer doesn?t feature a combined audio connection, you will have to use a splitter. The corresponding accessory (?Cable Splitter 1 Jack?, reference 941575) is available at Energy Sistem?s website and at the points of sale of the brand.


Important: Make sure you have selected the headset when adjusting the computer sound settings. In both cases, you must select the headset microphone as the computer audio input and the headset/headphones as the computer audio output. The Play/Pause (5) button will only work when the microphone is connected to your smartphone.


Connecting the microphone to a smartphone

You can also plug the Headphones microphone 1 into your smartphone using the Mini jack plug for 3.5 mm output (6) to make video calls.


Warranty

You can check the warranty terms here:
https://www.energysistem.com/terms-warranty


Declaration of conformity

Issuer's name: Energy Sistem Technology, S.A. - CIF: A53107488
Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain)
Tel: +34 966 830 324

We declare under our sole and exclusive responsibility that the product:

Description: detachable headset microphone
Brand: Energy Sistem
Model: Headphones Microphone 1
Manufacturer: Energy Sistem Technology, S.A.
Manufacturing country: China

referred to in this declaration complies with the essential norms and standards

EN 55032:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55035:2017

in conformity with the provisions of the Directive 2014/30/EU of the European Parliament and of the Council of 16th April 2014.

Finestrat, 1st June 2021

Imagen1
Miguel Ángel Aragüez García
Innovation and Technology Director
