Introduction
- Thank you for trusting our company and buying the new Gaming Mouse Pad ESG P5 RGB. We hope you enjoy it.
- XL-sized gaming pad (800 x 300 mm) with liquid-repellent surface, additional USB port to ensure no loss of connectivity in your PC, and, of course, multiple lighting modes via the touch controller.
- Before you start using your Gaming Mouse Pad ESG P5 RGB we strongly recommend reading this manual to get used to it.
Care and maintenance
- Do not expose your Gaming Mouse Pad ESG P5 RGB to impacts, dust, humidity or high temperatures.
- Use neither corrosive nor abrasive cleaning products.
- Do not disassemble the device. All repair works should be carried out exclusively by qualified staff of Energy Sistem Technology, S.A.
Features
General features
- Five lighting modes to add a colourful touch to your games and desktop.
- Thanks to its size, the pad can be used with any type of keyboard or mouse, providing all the room you need for your games or office work.
- Fitted with an additional USB port to connect other devices such as a keyboard, mouse, headphones, memory stick, etc.
- Prevents accidental damage when liquid is splashed onto the pad, forming droplets that can be easily wiped away.
- The pad's anti-slip rubber base provides superior stability, in order to enjoy maximum precision while gaming.
- The reinforced stitching around the edges prevents wear and tear and ensures long-lasting use.
Technical specifications
DIMENSIONS
- XL size: 800 x 300 x 4 mm
- Weight: 535 g
MATERIAL
- Surface: multi-spandex
- Base: rubber
LIGHTING
- LED colours: RGB LEDs with 5 light effects
POWER REQUIREMENTS
- Connection: USB cable
- Cable length: 200 cm
- Power connector: microUSB
- 1 USB 2.0 port
- Power consumption: 5 V/150 mA
OTHER FEATURES
- Touch control
- Stitched edges
- Waterproof material
Product content
- Gaming Mouse Pad ESG P5 RGB
- USB cable
General overview

- LED colour mode button
- MicroUSB charging port
- USB port
- LED lighting
Main functions

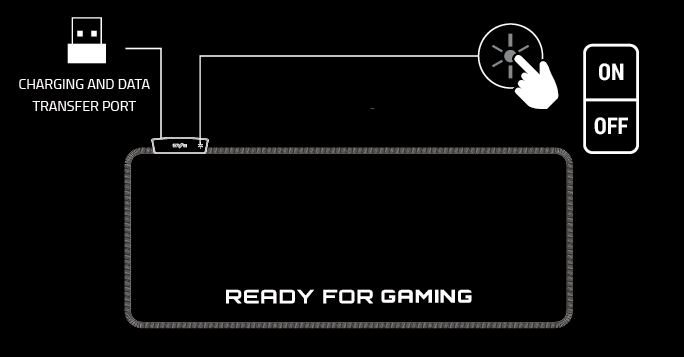

Switching on the device
To turn the LED lights on or off, connect the charging microUSB to the charging microUSB connection (2) and keep pressed the LED color mode touch button (1) until the LEDs turn on or off.
NOTE * Remember that the selected light mode will remain in memory in case of disconnection

Lighting modes
Your Gaming Mouse Pad ESG P5 RGB features multicolour RGB LEDs. Use the LED colour mode button (1) to add a colourful touch to your gaming desktop.
Once the light is on, tap repeatedly the LED colour mode button (1) to select the colour and light effect you prefer:

Warranty
You can check the warranty terms here
Declaration of conformity
Issuer's name: Energy Sistem Technology, S.A. - CIF: A53107488
Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain)
Tel: +34 966 830 324
We declare under our sole and exclusive responsibility that the product:
Description: gaming mouse pad
Brand: Energy Sistem
Model: Gaming Mouse Pad ESG P5 RGB
Manufacturer: Energy Sistem Technology, S.A.
Manufacturing country: China
referred to in this declaration complies with the following European Union directives:
Directive 2014/30/EU (EMC) of 29th March 2014
and essential norms and standards
- EN 55032:2015
- EN 55035:2017
in conformity with the provisions of the Directive 2014/30/EU of the European Parliament and of the Council of 16th April 2014.
Finestrat, 1st June 2021

Miguel Ángel Aragüez García
Innovation and Technology Director
